6 heads bridge moving stone calibrating machine

Short Description:

6 heads bridge swing quartz stone calibrating machine

   This machine adopt bridge swing design use 680mm size calibration

head can avoid the problem of four corner of slab don’t have same

thickness with other place that generated by fixed big size type

calibration machine. 6 heads can ensure have high efficiency, perfect

same thickness and smooth surface. This machine mainly used to

calibrate the front surface of the slab.


  • Function: granite, marble, quartz stone slab calibration
  • Heads quantity: 6
  • Main motor power: 22kw/ head
  • Product Detail

    Product Tags

    6 heads quartz stone calibration machine

    1. Working width: 600~1650mm, working thickness: 10~40mm.

    2. 4 swaying type diamond grinding plates, 22kw driven motor for each head,

      feed-in of the blades are controlled by 2.2 KW motor and speed reducer.

    3. Conveying of slabs is controlled by cycloidal-pin speed reducer with frequency converter

    4.  Disc diamond grinding heads:6 heads '



    WhatsApp: 008613361380416

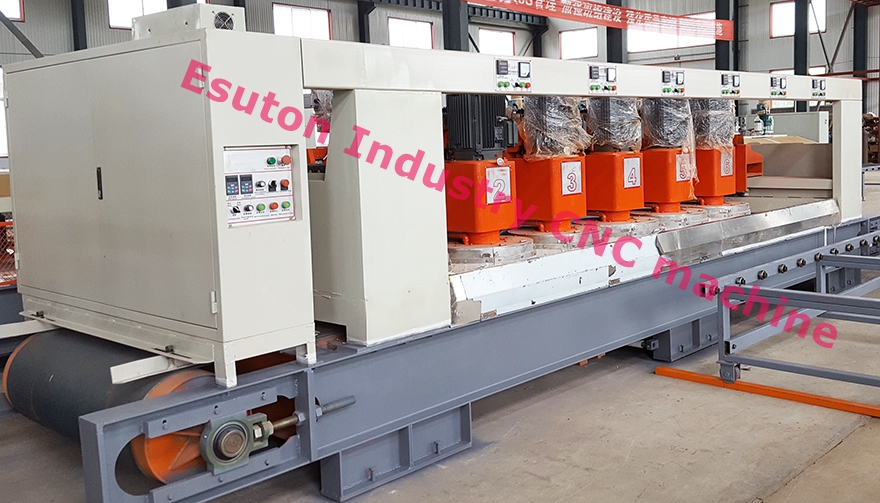

    6 heads quartz stone calibration machine2

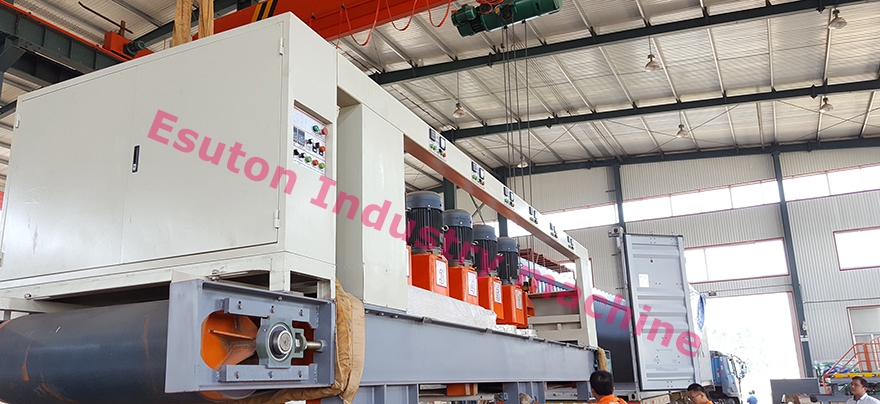

    6 heads quartz stone calibration machine3

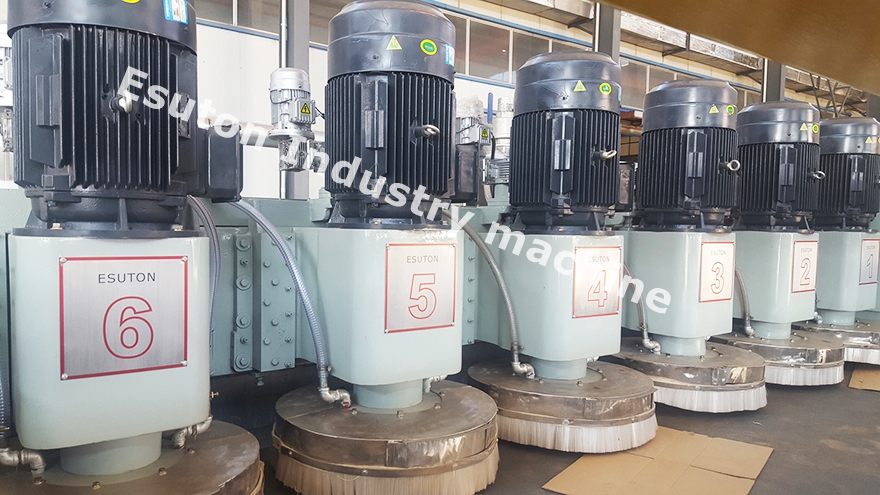

    6 heads quartz stone calibration machine1







    stone calibration machine
